Arduino library Tm1638plus, Header file for common data and functions between model classes. More...

#include "WProgram.h"

Include dependency graph for TM1638plus_common.h:

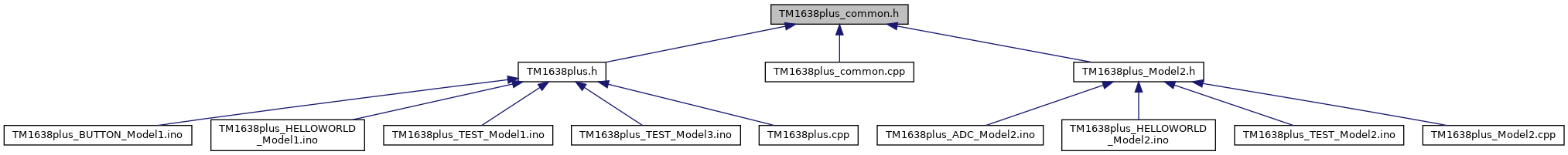

This graph shows which files directly or indirectly include this file:

Classes
class	TM1638plus_common
	The base Class , used to store common data & functions for all models types. More...

Macros
#define	TM_ACTIVATE 0x8F

#define	TM_BUTTONS_MODE 0x42

#define	TM_WRITE_LOC 0x44

#define	TM_WRITE_INC 0x40

#define	TM_SEG_ADR 0xC0

#define	TM_LEDS_ADR 0xC1

#define	TM_BRIGHT_ADR 0x88

#define	TM_BRIGHT_MASK 0x07

#define	TM_DEFAULT_BRIGHTNESS 0x02

#define	TM_DISPLAY_SIZE 8

#define	TM_ASCII_OFFSET 32

#define	TM_HEX_OFFSET 16

#define	TM_DOT_MASK_DEC 128

#define	TM_RED_LED 0x02

#define	TM_GREEN_LED 0x01

#define	TM_OFF_LED 0x00

#define	TM_HFIN_DELAY 1

#define	TM_HFOUT_DELAY 1

Enumerations
enum	AlignTextType_e : uint8_t { TMAlignTextRight = 1 , TMAlignTextLeft = 2 }

Variables
const unsigned char *	pFontSevenSegptr

Detailed Description

Arduino library Tm1638plus, Header file for common data and functions between model classes.

Author: Gavin Lyons

Note: See URL for full details. https://github.com/gavinlyonsrepo/TM1638plus

Macro Definition Documentation

◆ TM_ACTIVATE

#define TM_ACTIVATE 0x8F

Start up device

◆ TM_ASCII_OFFSET

#define TM_ASCII_OFFSET 32

ASCII table offset to jump over first missing 32 chars

◆ TM_BRIGHT_ADR

#define TM_BRIGHT_ADR 0x88

Brightness address

◆ TM_BRIGHT_MASK

#define TM_BRIGHT_MASK 0x07

Brightness mask

◆ TM_BUTTONS_MODE

#define TM_BUTTONS_MODE 0x42

Buttons mode

◆ TM_DEFAULT_BRIGHTNESS

#define TM_DEFAULT_BRIGHTNESS 0x02

Brightness can be 0x00 to 0x07 , 0x00 is least bright

◆ TM_DISPLAY_SIZE

#define TM_DISPLAY_SIZE 8

Size of display in digits

◆ TM_DOT_MASK_DEC

#define TM_DOT_MASK_DEC 128

0x80 Mask to switch on decimal point in seven segement

◆ TM_GREEN_LED

#define TM_GREEN_LED 0x01

Turn LED green color Model 3 only

◆ TM_HEX_OFFSET

#define TM_HEX_OFFSET 16

ASCII table offset to reach the number position

◆ TM_HFIN_DELAY

#define TM_HFIN_DELAY 1

uS Delay used by shiftIn function for High-freq MCU

◆ TM_HFOUT_DELAY

#define TM_HFOUT_DELAY 1

uS Delay used by shiftOut function for High-freq MCU

◆ TM_LEDS_ADR

#define TM_LEDS_ADR 0xC1

Leftmost LED address C1 C3 C5 C7 C9 CB CD CF

◆ TM_OFF_LED

#define TM_OFF_LED 0x00

Switch off LED

◆ TM_RED_LED

#define TM_RED_LED 0x02

Turn LED red color Model 3 only

◆ TM_SEG_ADR

#define TM_SEG_ADR 0xC0

leftmost segment Address C0 C2 C4 C6 C8 CA CC CE

◆ TM_WRITE_INC

#define TM_WRITE_INC 0x40

Incremental write

◆ TM_WRITE_LOC

#define TM_WRITE_LOC 0x44

Write to a memory location

Enumeration Type Documentation

◆ AlignTextType_e

enum AlignTextType_e : uint8_t

Alignment of text on display

Enumerator
TMAlignTextRight	Align text to the right on display
TMAlignTextLeft	Align text to the left on display

Variable Documentation

◆ pFontSevenSegptr

const unsigned char* pFontSevenSegptr

extern

Pointer to the seven segment font data table
