Class to handle fonts and graphics of color 16 bit display. More...

#include <color16_graphics_RDL.hpp>

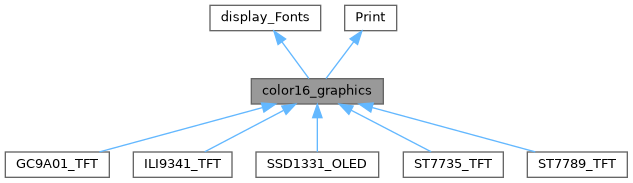

Inheritance diagram for color16_graphics:

[legend]

Public Types
enum	pixel_color565_e : uint16_t { RDLC_BLACK = 0x0000 , RDLC_BLUE = 0x001F , RDLC_RED = 0xF800 , RDLC_GREEN = 0x07E0 , RDLC_CYAN = 0x07FF , RDLC_MAGENTA = 0xF81F , RDLC_YELLOW = 0xFFE0 , RDLC_WHITE = 0xFFFF , RDLC_TAN = 0xED01 , RDLC_GREY = 0x9CD1 , RDLC_BROWN = 0x6201 , RDLC_DGREEN = 0x01C0 , RDLC_ORANGE = 0xFC00 , RDLC_NAVY = 0x000F , RDLC_DCYAN = 0x03EF , RDLC_MAROON = 0x7800 , RDLC_PURPLE = 0x780F , RDLC_OLIVE = 0x7BE0 , RDLC_LGREY = 0xC618 , RDLC_DGREY = 0x7BEF , RDLC_GYELLOW = 0xAFE5 , RDLC_PINK = 0xFC18 , RDLC_LBLUE = 0x7E5F , RDLC_BEIGE = 0xB5D2 }
	16-bit color definitions (RGB565 format). More...

enum	display_rotate_e : uint8_t { Degrees_0 = 0 , Degrees_90 , Degrees_180 , Degrees_270 }

Public Types inherited from Print
enum	BaseNum : uint8_t { RDL_DEC = 10 , RDL_HEX = 16 , RDL_OCT = 8 , RDL_BIN = 2 }

Public Member Functions
	color16_graphics ()
	Construct a new graphics class object.

virtual void	setAddrWindow (uint16_t, uint16_t, uint16_t, uint16_t)=0
	define in the sub class

void	fillScreen (uint16_t color)
	Fills the whole screen with a given color.

void	setCursor (int16_t x, int16_t y)
	Set the Cursor Position on screen.

void	drawPixel (uint16_t, uint16_t, uint16_t)
	Draw a pixel to screen.

rdlib::Return_Codes_e	drawDotGrid (int16_t x, int16_t y, int16_t w, int16_t h, uint8_t DotGridGap, uint16_t color)
	Draws a grid of dots on the screen starting from the given coordinates. This function draws a grid of pixels with a specified gap between them. It checks that the provided coordinates and dimensions are within the screen bounds and adjusts them if necessary. It also validates The grid of dots gap value and defaults it to 2 if invalid.

void	drawLine (int16_t x0, int16_t y0, int16_t x1, int16_t y1, uint16_t color)
	draws a line from (x0,y0) to (x1,y1).

rdlib::Return_Codes_e	drawFastVLine (uint16_t x, uint16_t y, uint16_t h, uint16_t color)
	Draws a vertical line starting at (x,y) with height h.

rdlib::Return_Codes_e	drawFastHLine (uint16_t x, uint16_t y, uint16_t w, uint16_t color)
	Draws a horizontal line starting at (x,y) with width w.

void	drawLineAngle (int16_t x, int16_t y, int angle, uint8_t start, uint8_t length, int offset, uint16_t color)
	Draws a line using an angle and length as parameters. This function draws a line starting from `(x, y)`, extending in the direction specified by `angle`, with a given `length`. The function also allows applying an `offset` to the angle before computing the line’s end coordinates.

void	drawRectWH (uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t color)
	draws rectangle at (x,y) where h is height and w is width of the rectangle.

rdlib::Return_Codes_e	fillRectangle (uint16_t, uint16_t, uint16_t, uint16_t, uint16_t)
	fills a rectangle starting from coordinates (x,y) with width of w and height of h.

void	fillRect (uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t color)
	fills a rectangle at (x,y) where h is height and w is width of the rectangle.

void	drawRoundRect (uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t r, uint16_t color)
	draws a rectangle with rounded edges

void	fillRoundRect (uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t r, uint16_t color)
	Fills a rectangle with rounded edges.

void	drawCircle (int16_t x0, int16_t y0, int16_t r, uint16_t color)
	draws a circle where (x0,y0) are center coordinates an r is circle radius.

void	fillCircle (int16_t x0, int16_t y0, int16_t r, uint16_t color)
	fills a circle where (x0,y0) are center coordinates an r is circle radius.

void	drawEllipse (int16_t cx, int16_t cy, int16_t semiMajorAxis, int16_t semiMinorAxis, bool fill, uint16_t color)
	Draw an ellipse on the display. This function uses the midpoint ellipse algorithm to efficiently draw an ellipse centered at (cx, cy) with the given semi-major (horizontal) and semi-minor (vertical) axes.

void	drawTriangle (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, uint16_t color)
	draws a triangle of coordinates (x0,y0), (x1,y1) and (x2,y2).

void	fillTriangle (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, uint16_t color)
	Fills a triangle of coordinates (x0,y0), (x1,y1) and (x2,y2).

void	drawQuadrilateral (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, int16_t x3, int16_t y3, uint16_t color)
	Draws a quadrilateral (four-sided polygon) by connecting four points with lines. This function draws a quadrilateral by drawing four lines between the given vertices. The lines are drawn in the order: (x0, y0) to (x1, y1), (x1, y1) to (x2, y2), (x2, y2) to (x3, y3), and finally (x3, y3) back to (x0, y0).

void	fillQuadrilateral (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, int16_t x3, int16_t y3, uint16_t color, bool useTriangleSplit=true)
	Fills a quadrilateral with the specified color using triangles. This function fills a quadrilateral by dividing it into triangles and filling them individually. The quadrilateral is filled by calling the `fillTriangle` function three times with appropriate vertex coordinates. The `useTriangleSplit` parameter determines whether the quadrilateral is divided into two triangles or if only one triangle is used.

rdlib::Return_Codes_e	drawPolygon (int16_t x, int16_t y, uint8_t sides, int16_t diameter, float rotation, bool fill, uint16_t color)
	Draws a polygon with a specified number of sides, diameter, rotation, and color. This function draws a regular polygon by connecting points equally spaced around a circle, with each point having a distance defined by the diameter. The polygon is rotated by the given angle (in degrees) before being drawn. The number of sides is enforced to be at least 3.

void	drawSimpleArc (int16_t cx, int16_t cy, int16_t radius, float startAngle, float endAngle, uint16_t color)
	Draw a simple arc of one pixel on the display( no offsets , thickness or maximum arc calculations) This function draws an arc between two angles (start and end) on a circle with a given radius.

void	drawArc (uint16_t cx, uint16_t cy, uint16_t radius, uint16_t thickness, float startAngle, float endAngle, uint16_t color)
	Draw an arc on the TFT display. This function draws an arc between two angles (start and end) on a circle with a given radius.

float	getArcAngleMax () const
	Get the current maximum angle of the arc.

void	setArcAngleMax (float arcAngleMax)
	Set a new maximum angle for the arc.

int	getArcAngleOffset () const
	Get the current angle offset.

void	setArcAngleOffset (int arcAngleOffset)
	Set a new angle offset.

virtual size_t	write (uint8_t) override
	write method used in the print class when user calls print

rdlib::Return_Codes_e	writeChar (int16_t x, int16_t y, char value)
	Write 1 character on Display.

rdlib::Return_Codes_e	writeCharString (int16_t x, int16_t y, char *text)
	Write Text character array on display.

void	setTextWrap (bool w)
	turn on or off screen wrap of the text (fonts 1-6)

void	setTextColor (uint16_t c, uint16_t bg)
	Set text color foreground and background.

void	setTextColor (uint16_t c)
	Set text color foreground.

rdlib::Return_Codes_e	drawIcon (uint16_t x, uint16_t y, uint16_t w, uint16_t color, uint16_t bgcolor, const std::span< const uint8_t > data)
	Draws an custom Icon of X by 8 size to screen , where X = 0 to 127.

rdlib::Return_Codes_e	drawBitmap (uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t color, uint16_t bgcolor, const std::span< const uint8_t > data)
	: Draws an bi-color bitmap to screen

rdlib::Return_Codes_e	drawBitmap24 (uint16_t x, uint16_t y, const std::span< const uint8_t > data, uint16_t w, uint16_t h)
	Draws an 24 bit color bitmap to screen from a data array.

rdlib::Return_Codes_e	drawBitmap16 (uint16_t x, uint16_t y, const std::span< const uint8_t > data, uint16_t w, uint16_t h)
	: Draws an 16 bit color bitmap to screen from a data array

rdlib::Return_Codes_e	drawSprite (uint16_t x, uint16_t y, const std::span< const uint8_t > data, uint16_t w, uint16_t h, uint16_t backgroundColor)
	: Draws an 16 bit color sprite bitmap to screen with transparent background

int16_t	Color565 (int16_t, int16_t, int16_t)
	: Convert: 24-bit color to 565 16-bit color

int	getDisplaySPIBlockSize () const
	Gets the maximum SPI transaction block size.

void	setDisplaySPIBlockSize (int size)
	Sets the maximum SPI transaction block size.

Public Member Functions inherited from display_Fonts
	display_Fonts ()
	init the OLED font class object constructor

rdlib::Return_Codes_e	setFont (display_Font_name_e)
	SetFont.

void	setInvertFont (bool invertStatus)
	setInvertFont

bool	getInvertFont (void)
	getInvertFont

Public Member Functions inherited from Print
int	getWriteError ()
	gets the error flag status, zero no error

void	clearWriteError ()
	clears the error flag by setting it to zero

virtual size_t	write (const uint8_t *buffer, size_t size)
	define in the sub class

size_t	write (const char *str)
	Writes a string to the output.

size_t	write (const char *buffer, size_t size)
	Writes a buffer of a specified size to the output.

virtual int	availableForWrite ()
	define in the sub class

size_t	print (const char[])
	print an array

size_t	print (char)
	print an character

size_t	print (int, int=RDL_DEC)
	print an integer of base number system

size_t	print (unsigned int, int=RDL_DEC)
	print an unsigned integer of base number system

size_t	print (long, int=RDL_DEC)
	print an long integer of base number system

size_t	print (unsigned long, int=RDL_DEC)
	print an unsigned long integer of base number system

size_t	print (double, int=2)
	print an double

size_t	print (const std::string &)
	print an C++ string object

size_t	println (const char[])
	Prints a character array followed by a newline.

size_t	println (char)
	print an character followed by new line

size_t	println (int, int=RDL_DEC)
	print an integer of base number system followed by new line

size_t	println (unsigned int, int=RDL_DEC)
	print an unsigned integer of base number system followed by new line

size_t	println (long, int=RDL_DEC)
	print an long integer of base number system followed by new line

size_t	println (unsigned long, int=RDL_DEC)
	print an unsigned long integer of base number system followed by new line

size_t	println (double, int=2)
	print an double

size_t	println (void)
	Goto to new line.

size_t	println (const std::string &s)
	print an C++ string object followed by new line

template<typename T >
size_t	print (const std::vector< T > &v, int format=defaultFormat< T >())
	Print a vector of any type.

template<typename T >
size_t	println (const std::vector< T > &vec, int format=defaultFormat< T >())
	Print a vector of elements followed by a newline.

template<typename T , size_t N>
size_t	print (const std::array< T, N > &arr, int format=defaultFormat< T >())
	Print a std::array of any type.

template<typename T , size_t N>
size_t	println (const std::array< T, N > &arr, int format=defaultFormat< T >())
	Print a std::array of elements followed by a newline.

Protected Member Functions
void	pushColor (uint16_t color)
	pushColor

void	writeCommand (uint8_t)
	: Write an SPI command to

void	writeData (uint8_t)
	Write an SPI data byte to device.

void	spiWrite (uint8_t)
	Write byte to SPI.

void	spiWriteDataBuffer (uint8_t *spidata, int len)
	Write a buffer to SPI, both Software and hardware SPI supported.

Protected Member Functions inherited from Print
void	setWriteError (int err=0)

Protected Attributes
bool	_textwrap = true

uint16_t	_textcolor = 0xFFFF

uint16_t	_textbgcolor = 0x0000

int16_t	_cursorX = 0

int16_t	_cursorY = 0

uint16_t	_width

uint16_t	_height

uint8_t	_XStart = 0

uint8_t	_YStart = 0

float	_arcAngleMax = 360.0f

int	_arcAngleOffset = 0

int8_t	_Display_DC

int8_t	_Display_RST

int8_t	_Display_CS

int8_t	_Display_SCLK

int8_t	_Display_SDATA

int8_t	_Display_MISO

int	_DeviceNumGpioChip = 0

int	_GpioHandle = 0

bool	_hardwareSPI =true

uint16_t	_HighFreqDelay = 0

int	_spiHandle = 0

Protected Attributes inherited from display_Fonts
std::span< const uint8_t >	_FontSelect = pFontDefault

uint8_t	_Font_X_Size = 0x08

uint8_t	_Font_Y_Size = 0x08

uint8_t	_FontOffset = 0x20

uint8_t	_FontNumChars = 0x5F

Private Attributes
int	_Display_SPI_BLK_SIZE = 65536

Detailed Description

Class to handle fonts and graphics of color 16 bit display.

Member Enumeration Documentation

◆ display_rotate_e

enum color16_graphics::display_rotate_e : uint8_t

TFT rotate modes in degrees

Enumerator
Degrees_0	No rotation 0 degrees
Degrees_90	Rotation 90 degrees
Degrees_180	Rotation 180 degrees
Degrees_270	Rotation 270 degrees

◆ pixel_color565_e

enum color16_graphics::pixel_color565_e : uint16_t

16-bit color definitions (RGB565 format).

Enumerator
RDLC_BLACK	Black
RDLC_BLUE	Blue
RDLC_RED	Red
RDLC_GREEN	Green
RDLC_CYAN	Cyan
RDLC_MAGENTA	Magenta
RDLC_YELLOW	Yellow
RDLC_WHITE	White
RDLC_TAN	Tan
RDLC_GREY	Grey
RDLC_BROWN	Brown
RDLC_DGREEN	Dark Green
RDLC_ORANGE	Orange
RDLC_NAVY	Navy
RDLC_DCYAN	Dark Cyan
RDLC_MAROON	Maroon
RDLC_PURPLE	Purple
RDLC_OLIVE	Olive
RDLC_LGREY	Light Grey
RDLC_DGREY	Dark Grey
RDLC_GYELLOW	Greenish Yellow
RDLC_PINK	Pink
RDLC_LBLUE	Light Blue
RDLC_BEIGE	Beige

Member Function Documentation

◆ Color565()

int16_t color16_graphics::Color565	(	int16_t	r,
		int16_t	g,
		int16_t	b
	)

: Convert: 24-bit color to 565 16-bit color

Parameters

r	color red
g	color green
b	color blue

Returns: 16 bit color value

Note: 3 byte to 2 byte, Red Green Blue. RRRR RRRR GGGG GGGG BBBB BBBB => 565 color mode => RRRRR GGGGGG BBBBB

◆ drawArc()

void color16_graphics::drawArc	(	uint16_t	cx,
		uint16_t	cy,
		uint16_t	radius,
		uint16_t	thickness,
		float	startAngle,
		float	endAngle,
		uint16_t	color
	)

Draw an arc on the TFT display. This function draws an arc between two angles (start and end) on a circle with a given radius.

Parameters

cx	X-coordinate of the center of the circle.
cy	Y-coordinate of the center of the circle.
radius	The radius of the circle.
thickness	the thickness of the arc
startAngle	The starting angle of the arc (in degrees).
endAngle	The ending angle of the arc (in degrees).
color	The color of the arc.

variables _arcAngleMax and _arcAngleOffset which can be set by user with setters to define behaviour of arc. _arcAngleOffset is zero default, means 0 degree is positive X axis , Arc is drawn counterclockwise XXX 270 XXX 180 XXX 000 XXX 090 XXX This function uses a modified midpoint circle algorithm combined with scanline filling to efficiently draw an arc with a specified thickness. It calculates pixel positions using trigonometric boundary checks and slopes for accurate rendering. For more information, see: https://en.wikipedia.org/wiki/Midpoint_circle_algorithm

◆ drawBitmap()

rdlib::Return_Codes_e color16_graphics::drawBitmap	(	uint16_t	x,
		uint16_t	y,
		uint16_t	w,
		uint16_t	h,
		uint16_t	color,
		uint16_t	bgcolor,
		const std::span< const uint8_t >	bitmap
	)

: Draws an bi-color bitmap to screen

Parameters

x	X coordinate
y	Y coordinate
w	width of the bitmap in pixels
h	height of the bitmap in pixels
color	bitmap foreground colors ,is bi-color
bgcolor	bitmap background colors ,is bi-color
bitmap	bitmap data, horizontally addressed.

Returns

enum rdlib::Return_Codes_e

◆ drawBitmap16()

rdlib::Return_Codes_e color16_graphics::drawBitmap16	(	uint16_t	x,
		uint16_t	y,
		const std::span< const uint8_t >	bitmap,
		uint16_t	w,
		uint16_t	h
	)

: Draws an 16 bit color bitmap to screen from a data array

Parameters

x	X coordinate
y	Y coordinate
bitmap	databuffer containing Bitmap data
w	width of the bitmap in pixels
h	height of the bitmap in pixels

Returns

enum rdlib::Return_Codes_e

◆ drawBitmap24()

rdlib::Return_Codes_e color16_graphics::drawBitmap24	(	uint16_t	x,
		uint16_t	y,
		const std::span< const uint8_t >	bitmap,
		uint16_t	w,
		uint16_t	h
	)

Draws an 24 bit color bitmap to screen from a data array.

Parameters

x	X coordinate
y	Y coordinate
bitmap	A span to the data buffer containing Bitmap data
w	width of the bitmap in pixels
h	height of the bitmap in pixels

Returns

enum rdlib::Return_Codes_e

Note: 24 bit color converted to 16 bit color

◆ drawCircle()

void color16_graphics::drawCircle	(	int16_t	x0,
		int16_t	y0,
		int16_t	r,
		uint16_t	color
	)

draws a circle where (x0,y0) are center coordinates an r is circle radius.

Parameters

x0	circle center x position
y0	circle center y position
r	radius of circle
color	The color of the circle , 565 16 Bit color

◆ drawDotGrid()

rdlib::Return_Codes_e color16_graphics::drawDotGrid	(	int16_t	x,
		int16_t	y,
		int16_t	w,
		int16_t	h,
		uint8_t	DotGridGap,
		uint16_t	color
	)

Draws a grid of dots on the screen starting from the given coordinates. This function draws a grid of pixels with a specified gap between them. It checks that the provided coordinates and dimensions are within the screen bounds and adjusts them if necessary. It also validates The grid of dots gap value and defaults it to 2 if invalid.

Parameters

x	The x-coordinate of the top-left corner where The grid of dots will start.
y	The y-coordinate of the top-left corner where The grid of dots will start.
w	The width of the area to draw The grid of dots, from the starting x-coordinate.
h	The height of the area to draw The grid of dots, from the starting y-coordinate.
DotGridGap	The gap between each dot gap line, controlling the spacing between drawn pixels.
color	The color of the pixels to draw in The grid of dots.

Returns

rdlib::Return_Codes_e Returns a status code indicating success or failure. Possible return values:

rdlib::Success: The grid of dots was successfully drawn.
rdlib::ShapeScreenBounds: The provided coordinates or dimensions are out of screen bounds.

◆ drawEllipse()

void color16_graphics::drawEllipse	(	int16_t	cx,
		int16_t	cy,
		int16_t	semiMajorAxis,
		int16_t	semiMinorAxis,
		bool	fill,
		uint16_t	color
	)

Draw an ellipse on the display. This function uses the midpoint ellipse algorithm to efficiently draw an ellipse centered at (cx, cy) with the given semi-major (horizontal) and semi-minor (vertical) axes.

Parameters

cx	X-coordinate of the ellipse center.
cy	Y-coordinate of the ellipse center.
semiMajorAxis	Length of the semi-major axis (horizontal radius).
semiMinorAxis	Length of the semi-minor axis (vertical radius).
fill	if false draw Ellipse , if true fill it!
color	16-bit color value for the ellipse.

◆ drawFastHLine()

rdlib::Return_Codes_e color16_graphics::drawFastHLine	(	uint16_t	x,
		uint16_t	y,
		uint16_t	w,
		uint16_t	color
	)

Draws a horizontal line starting at (x,y) with width w.

Parameters

x	The starting x coordinate
y	The starting y coordinate
w	The width of the line
color	The color of the line 565 16 Bit color

Returns

enum rdlib::Return_Codes_e

rdlib::Success for success
rdlib::ShapeScreenBounds Error

◆ drawFastVLine()

rdlib::Return_Codes_e color16_graphics::drawFastVLine	(	uint16_t	x,
		uint16_t	y,
		uint16_t	h,
		uint16_t	color
	)

Draws a vertical line starting at (x,y) with height h.

Parameters

x	The starting x coordinate
y	The starting y coordinate
h	The height of the line
color	The color of the line 565 16 Bit color

Returns

enum rdlib::Return_Codes_e

rdlib::Success for success
rdlib::ShapeScreenBounds Error

◆ drawIcon()

rdlib::Return_Codes_e color16_graphics::drawIcon	(	uint16_t	x,
		uint16_t	y,
		uint16_t	w,
		uint16_t	color,
		uint16_t	backcolor,
		const std::span< const uint8_t >	character
	)

Draws an custom Icon of X by 8 size to screen , where X = 0 to 127.

Parameters

x	X coordinate
y	Y coordinate
w	0-MAX_Y possible values width of icon in pixels , height is fixed at 8 pixels
color	icon foreground colors ,is bi-color
backcolor	icon background colors ,is bi-color
character	icon data vertically addressed.

Returns

enum rdlib::Return_Codes_e

◆ drawLine()

void color16_graphics::drawLine	(	int16_t	x0,
		int16_t	y0,
		int16_t	x1,
		int16_t	y1,
		uint16_t	color
	)

draws a line from (x0,y0) to (x1,y1).

Parameters

x0	x start coordinate
y0	y start coordinate
x1	x end coordinate
y1	y end coordinate
color	color to fill rectangle 565 16-bit

◆ drawLineAngle()

void color16_graphics::drawLineAngle	(	int16_t	x,
		int16_t	y,
		int	angle,
		uint8_t	start,
		uint8_t	length,
		int	offset,
		uint16_t	color
	)

Draws a line using an angle and length as parameters. This function draws a line starting from (x, y), extending in the direction specified by angle, with a given length. The function also allows applying an offset to the angle before computing the line’s end coordinates.

Parameters

x	The starting x-coordinate (horizontal position).
y	The starting y-coordinate (vertical position).
angle	The angle (in degrees) at which the line is drawn.
start	calculates a new starting position by moving start units along the given angle.
length	The length of the line.
offset	An additional offset applied to the angle before calculating the endpoint.
color	The color of the line (RGB565 format).

◆ drawPixel()

void color16_graphics::drawPixel	(	uint16_t	x,
		uint16_t	y,
		uint16_t	color
	)

Draw a pixel to screen.

Parameters

x	Column co-ord
y	row co-ord
color	565 16-bit

◆ drawPolygon()

rdlib::Return_Codes_e color16_graphics::drawPolygon	(	int16_t	x,
		int16_t	y,
		uint8_t	sides,
		int16_t	diameter,
		float	rotation,
		bool	fill,
		uint16_t	color
	)

Draws a polygon with a specified number of sides, diameter, rotation, and color. This function draws a regular polygon by connecting points equally spaced around a circle, with each point having a distance defined by the diameter. The polygon is rotated by the given angle (in degrees) before being drawn. The number of sides is enforced to be at least 3.

Parameters

x	The x-coordinate of the center of the polygon.
y	The y-coordinate of the center of the polygon.
sides	The number of sides the polygon will have. Must be at least 3.
diameter	The diameter of the circle inscribed by the polygon.
rotation	The angle (in degrees) by which to rotate the polygon.
fill	if false draw ,if true fill
color	The color of the polygon edges.

Returns: error code GenericError , if user inputs incorrect sides value

◆ drawQuadrilateral()

void color16_graphics::drawQuadrilateral	(	int16_t	x0,
		int16_t	y0,
		int16_t	x1,
		int16_t	y1,
		int16_t	x2,
		int16_t	y2,
		int16_t	x3,
		int16_t	y3,
		uint16_t	color
	)

Draws a quadrilateral (four-sided polygon) by connecting four points with lines. This function draws a quadrilateral by drawing four lines between the given vertices. The lines are drawn in the order: (x0, y0) to (x1, y1), (x1, y1) to (x2, y2), (x2, y2) to (x3, y3), and finally (x3, y3) back to (x0, y0).

Parameters

x0	The x-coordinate of the first vertex.
y0	The y-coordinate of the first vertex.
x1	The x-coordinate of the second vertex.
y1	The y-coordinate of the second vertex.
x2	The x-coordinate of the third vertex.
y2	The y-coordinate of the third vertex.
x3	The x-coordinate of the fourth vertex.
y3	The y-coordinate of the fourth vertex.
color	The 565 color used to draw the lines of the quadrilateral.

◆ drawRectWH()

void color16_graphics::drawRectWH	(	uint16_t	x,
		uint16_t	y,
		uint16_t	w,
		uint16_t	h,
		uint16_t	color
	)

draws rectangle at (x,y) where h is height and w is width of the rectangle.

Parameters

x	x start coordinate
y	y start coordinate
w	width of the rectangle
h	height of the rectangle
color	color to fill rectangle 565 16-bit

◆ drawRoundRect()

void color16_graphics::drawRoundRect	(	uint16_t	x,
		uint16_t	y,
		uint16_t	w,
		uint16_t	h,
		uint16_t	r,
		uint16_t	color
	)

draws a rectangle with rounded edges

Parameters

x	x start coordinate
y	y start coordinate
w	width of the rectangle
h	height of the rectangle
r	r: radius of the rounded edges
color	color to fill rectangle 565 16-bit

◆ drawSimpleArc()

void color16_graphics::drawSimpleArc	(	int16_t	cx,
		int16_t	cy,
		int16_t	radius,
		float	startAngle,
		float	endAngle,
		uint16_t	color
	)

Draw a simple arc of one pixel on the display( no offsets , thickness or maximum arc calculations) This function draws an arc between two angles (start and end) on a circle with a given radius.

Parameters

cx	X-coordinate of the center of the circle.
cy	Y-coordinate of the center of the circle.
radius	The radius of the circle.
startAngle	The starting angle of the arc (in degrees).
endAngle	The ending angle of the arc (in degrees).
color	The color of the arc.

0 degree is positive X axis , arc is drawn counterclockwise

◆ drawSprite()

rdlib::Return_Codes_e color16_graphics::drawSprite	(	uint16_t	x,
		uint16_t	y,
		const std::span< const uint8_t >	sprite,
		uint16_t	w,
		uint16_t	h,
		uint16_t	backgroundColor
	)

: Draws an 16 bit color sprite bitmap to screen with transparent background

Parameters

x	X coordinate
y	Y coordinate
sprite	span to sprite data
w	width of the sprite in pixels
h	height of the sprite in pixels
backgroundColor	the background color of sprite (16 bit 565) this will be made transparent

Note: Does not use buffer, just draw pixel

Returns

Success=success
BitmapDataEmpty=invalid pointer object
BitmapScreenBounds=Co-ordinates out of bounds
BitmapSize=Sprite data out of bounds

◆ drawTriangle()

void color16_graphics::drawTriangle	(	int16_t	x0,
		int16_t	y0,
		int16_t	x1,
		int16_t	y1,
		int16_t	x2,
		int16_t	y2,
		uint16_t	color
	)

draws a triangle of coordinates (x0,y0), (x1,y1) and (x2,y2).

Parameters

x0	x start coordinate point 1
y0	y start coordinate point 1
x1	x start coordinate point 2
y1	y start coordinate point 2
x2	x start coordinate point 3
y2	y start coordinate point 3
color	color to draw triangle 565 16-bit

◆ fillCircle()

void color16_graphics::fillCircle	(	int16_t	x0,
		int16_t	y0,
		int16_t	r,
		uint16_t	color
	)

fills a circle where (x0,y0) are center coordinates an r is circle radius.

Parameters

x0	circle center x position
y0	circle center y position
r	radius of circle
color	color of the circle , 565 16 Bit color

◆ fillQuadrilateral()

void color16_graphics::fillQuadrilateral	(	int16_t	x0,
		int16_t	y0,
		int16_t	x1,
		int16_t	y1,
		int16_t	x2,
		int16_t	y2,
		int16_t	x3,
		int16_t	y3,
		uint16_t	color,
		bool	useTriangleSplit = `true`
	)

Fills a quadrilateral with the specified color using triangles. This function fills a quadrilateral by dividing it into triangles and filling them individually. The quadrilateral is filled by calling the fillTriangle function three times with appropriate vertex coordinates. The useTriangleSplit parameter determines whether the quadrilateral is divided into two triangles or if only one triangle is used.

Parameters

x0	The x-coordinate of the first vertex.
y0	The y-coordinate of the first vertex.
x1	The x-coordinate of the second vertex.
y1	The y-coordinate of the second vertex.
x2	The x-coordinate of the third vertex.
y2	The y-coordinate of the third vertex.
x3	The x-coordinate of the fourth vertex.
y3	The y-coordinate of the fourth vertex.
color	The color used to fill the quadrilateral.
useTriangleSplit	A boolean flag that determines whether the quadrilateral should be divided into two or three triangles.

◆ fillRect()

void color16_graphics::fillRect	(	uint16_t	x,
		uint16_t	y,
		uint16_t	w,
		uint16_t	h,
		uint16_t	color
	)

fills a rectangle at (x,y) where h is height and w is width of the rectangle.

Parameters

x	x start coordinate
y	y start coordinate
w	width of the rectangle
h	height of the rectangle
color	color to fill rectangle 565 16-bit

◆ fillRectangle()

rdlib::Return_Codes_e color16_graphics::fillRectangle	(	uint16_t	x,
		uint16_t	y,
		uint16_t	w,
		uint16_t	h,
		uint16_t	color
	)

fills a rectangle starting from coordinates (x,y) with width of w and height of h.

Parameters

x	x coordinate
y	y coordinate
w	width of the rectangle
h	height of the rectangle
color	color to fill rectangle 565 16-bit

Note: uses spiWriteDataBuffer method

Returns

enum rdlib::Return_Codes_e

◆ fillRoundRect()

void color16_graphics::fillRoundRect	(	uint16_t	x,
		uint16_t	y,
		uint16_t	w,
		uint16_t	h,
		uint16_t	r,
		uint16_t	color
	)

Fills a rectangle with rounded edges.

Parameters

x	x start coordinate
y	y start coordinate
w	width of the rectangle
h	height of the rectangle
r	r: radius of the rounded edges
color	color to fill rectangle 565 16-bit

◆ fillScreen()

void color16_graphics::fillScreen ( uint16_t color )

Fills the whole screen with a given color.

Parameters

color 565 16-bit

◆ fillTriangle()

void color16_graphics::fillTriangle	(	int16_t	x0,
		int16_t	y0,
		int16_t	x1,
		int16_t	y1,
		int16_t	x2,
		int16_t	y2,
		uint16_t	color
	)

Fills a triangle of coordinates (x0,y0), (x1,y1) and (x2,y2).

Parameters

x0	x start coordinate point 1
y0	y start coordinate point 1
x1	x start coordinate point 2
y1	y start coordinate point 2
x2	x start coordinate point 3
y2	y start coordinate point 3
color	color to fill , 565 16-bit

◆ getArcAngleMax()

float color16_graphics::getArcAngleMax ( ) const

Get the current maximum angle of the arc.

Returns: The current maximum angle in degrees.

◆ getArcAngleOffset()

int color16_graphics::getArcAngleOffset ( ) const

Get the current angle offset.

Returns: The current angle offset in degrees.

◆ getDisplaySPIBlockSize()

int color16_graphics::getDisplaySPIBlockSize ( ) const

Gets the maximum SPI transaction block size.

Returns: The current block size of the SPI transaction.

◆ pushColor()

void color16_graphics::pushColor ( uint16_t color )

protected

pushColor

Parameters

color

◆ setAddrWindow()

virtual void color16_graphics::setAddrWindow	(	uint16_t	,
		uint16_t	,
		uint16_t	,
		uint16_t
	)

pure virtual

define in the sub class

Implemented in ILI9341_TFT, SSD1331_OLED, ST7735_TFT, and ST7789_TFT.

◆ setArcAngleMax()

void color16_graphics::setArcAngleMax ( float arcAngleMax )

Set a new maximum angle for the arc.

Parameters

arcAngleMax The new maximum angle in degrees (should be positive).

◆ setArcAngleOffset()

void color16_graphics::setArcAngleOffset ( int arcAngleOffset )

Set a new angle offset.

Parameters

arcAngleOffset The new angle offset in degrees.

◆ setCursor()

void color16_graphics::setCursor	(	int16_t	x,
		int16_t	y
	)

Set the Cursor Position on screen.

Parameters

x	the x co-ord of the cursor position
y	the y co-ord of the cursor position

◆ setDisplaySPIBlockSize()

void color16_graphics::setDisplaySPIBlockSize ( int size )

Sets the maximum SPI transaction block size.

Parameters

size	The new block size to set.

Note: Maximum block size supported by lg library is 65536 see LG_MAX_SPI_DEVICE_COUNT in lg library. Also your Computer may have limit on spi transaction size

◆ setTextColor() [1/2]

void color16_graphics::setTextColor ( uint16_t c )

Set text color foreground.

Parameters

c	text foreground color , Color definitions 16-Bit Color Values R5G6B5

◆ setTextColor() [2/2]

void color16_graphics::setTextColor	(	uint16_t	c,
		uint16_t	b
	)

Set text color foreground and background.

Parameters

c	text foreground color , Color definitions 16-Bit Color Values R5G6B5
b	text background color , Color definitions 16-Bit Color Values R5G6B5

◆ setTextWrap()

void color16_graphics::setTextWrap ( bool w )

turn on or off screen wrap of the text (fonts 1-6)

Parameters

w TRUE on

◆ spiWrite()

void color16_graphics::spiWrite ( uint8_t spidata )

protected

Write byte to SPI.

Parameters

spidata byte to write

Note: uses _HIGHFREQ_DELAY to slowdown software SPI if CPU frequency too fast

◆ spiWriteDataBuffer()

void color16_graphics::spiWriteDataBuffer	(	uint8_t *	spidata,
		int	len
	)

protected

Write a buffer to SPI, both Software and hardware SPI supported.

Parameters

spidata	to send
len	length of buffer

Note: The maximum size of an SPI transaction by default in lgpio library is 65536 or _Display_SPI_BLK_SIZE. SO a buffer larger than this must be sent in blocks of 65536 bytes. The largest current expected size is for a full screen write to a 240x320 display currently which is 240x320x2 = 153600 bytes. spidev.bufsiz must also be set to 65536 or higher see Readme for display for more details.

◆ write()

size_t color16_graphics::write ( uint8_t character )

overridevirtual

write method used in the print class when user calls print

Parameters

character the character to print

Returns

Will return

1. success
rdlib::Return_Codes_e enum error code, An error in the writeChar method.upstream

Implements Print.

◆ writeChar()

rdlib::Return_Codes_e color16_graphics::writeChar	(	int16_t	x,
		int16_t	y,
		char	value
	)

Write 1 character on Display.

Parameters

x	character starting position on x-axis. Valid values
y	character starting position on x-axis. Valid values
value	Character to be written.

Note: uses spiWriteDataBuffer method to write each character as a buffer for speed. Much faster than pixel by pixel spi byte writes

Returns

Will return rdlib::Return_Codes_e enum

rdlib::Success success
rdlib::CharScreenBounds co-ords out of bounds check x and y
rdlib::CharFontASCIIRange Character out of ASCII Font bounds, check Font range
rdlib::MemoryAError Could not assign memory for character buffer

◆ writeCharString()

rdlib::Return_Codes_e color16_graphics::writeCharString	(	int16_t	x,
		int16_t	y,
		char *	pText
	)

Write Text character array on display.

Parameters

x	character starting position on x-axis.
y	character starting position on y-axis.
pText	Pointer to the array of the text to be written.

Returns

Will return

rdlib::Success Success
rdlib::CharArrayNullptr String pText Array invalid pointer object
Failure code from writeChar method upstream

◆ writeCommand()

void color16_graphics::writeCommand ( uint8_t spicmdbyte )

protected

: Write an SPI command to

Parameters

spicmdbyte command byte to send

◆ writeData()

void color16_graphics::writeData ( uint8_t spidatabyte )

protected

Write an SPI data byte to device.

Parameters

spidatabyte byte to send

Member Data Documentation

◆ _arcAngleMax

float color16_graphics::_arcAngleMax = 360.0f

protected

Maximum angle of Arc , used by drawArc

◆ _arcAngleOffset

int color16_graphics::_arcAngleOffset = 0

protected

used by drawArc, offset for adjusting the starting angle of arc. default positive X-axis (0°)

◆ _cursorX

int16_t color16_graphics::_cursorX = 0

protected

Current X co-ord cursor position

◆ _cursorY

int16_t color16_graphics::_cursorY = 0

protected

Current Y co-ord cursor position

◆ _DeviceNumGpioChip

int color16_graphics::_DeviceNumGpioChip = 0

protected

The device number of a gpiochip ls /dev/gpio

◆ _Display_CS

int8_t color16_graphics::_Display_CS

protected

GPIO for chip select line, Software SPI only

◆ _Display_DC

int8_t color16_graphics::_Display_DC

protected

GPIO for data or command line

◆ _Display_MISO

int8_t color16_graphics::_Display_MISO

protected

GPIO for MISO line, Software SPI only

◆ _Display_RST

int8_t color16_graphics::_Display_RST

protected

GPIO for reset line

◆ _Display_SCLK

int8_t color16_graphics::_Display_SCLK

protected

GPIO for Clock line, Software SPI only

◆ _Display_SDATA

int8_t color16_graphics::_Display_SDATA

protected

GPIO for MOSI line, Software SPI only

◆ _Display_SPI_BLK_SIZE

int color16_graphics::_Display_SPI_BLK_SIZE = 65536

private

max block size SPI Transaction, lgpio lib default(LG_MAX_SPI_DEVICE_COUNT)

◆ _GpioHandle

int color16_graphics::_GpioHandle = 0

protected

This holds a handle to a gpiochip device opened by lgGpiochipOpen

◆ _hardwareSPI

bool color16_graphics::_hardwareSPI =true

protected

True for Hardware SPI on , false fpr Software SPI on

◆ _height

uint16_t color16_graphics::_height

protected

Display h as modified by current rotation

◆ _HighFreqDelay

uint16_t color16_graphics::_HighFreqDelay = 0

protected

uS GPIO Communications delay, SW SPI ONLY

◆ _spiHandle

int color16_graphics::_spiHandle = 0

protected

Hold a handle for the SPI device on the channel.

◆ _textbgcolor

uint16_t color16_graphics::_textbgcolor = 0x0000

protected

16 bit BackGround color for text

◆ _textcolor

uint16_t color16_graphics::_textcolor = 0xFFFF

protected

16 bit ForeGround color for text

◆ _textwrap

bool color16_graphics::_textwrap = true

protected

wrap text around the screen on overflow

◆ _width

uint16_t color16_graphics::_width

protected

Display w as modified by current rotation

◆ _XStart

uint8_t color16_graphics::_XStart = 0

protected

Used to store _colstart changed by current rotation

◆ _YStart

uint8_t color16_graphics::_YStart = 0

protected

Used to store _rowstart changed by current rotation

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ display_rotate_e

◆ pixel_color565_e

Member Function Documentation

◆ Color565()

◆ drawArc()

◆ drawBitmap()

◆ drawBitmap16()

◆ drawBitmap24()

◆ drawCircle()

◆ drawDotGrid()

◆ drawEllipse()

◆ drawFastHLine()

◆ drawFastVLine()

◆ drawIcon()

◆ drawLine()

◆ drawLineAngle()

◆ drawPixel()

◆ drawPolygon()

◆ drawQuadrilateral()

◆ drawRectWH()

◆ drawRoundRect()

◆ drawSimpleArc()

◆ drawSprite()

◆ drawTriangle()

◆ fillCircle()

◆ fillQuadrilateral()

◆ fillRect()

◆ fillRectangle()

◆ fillRoundRect()

◆ fillScreen()

◆ fillTriangle()

◆ getArcAngleMax()

◆ getArcAngleOffset()

◆ getDisplaySPIBlockSize()

◆ pushColor()

◆ setAddrWindow()

◆ setArcAngleMax()

◆ setArcAngleOffset()

◆ setCursor()

◆ setDisplaySPIBlockSize()

◆ setTextColor() [1/2]

◆ setTextColor() [2/2]

◆ setTextWrap()

◆ spiWrite()

◆ spiWriteDataBuffer()

◆ write()

◆ writeChar()

◆ writeCharString()

◆ writeCommand()

◆ writeData()

Member Data Documentation

◆ _arcAngleMax

◆ _arcAngleOffset

◆ _cursorX

◆ _cursorY

◆ _DeviceNumGpioChip

◆ _Display_CS

◆ _Display_DC

◆ _Display_MISO

◆ _Display_RST

◆ _Display_SCLK

◆ _Display_SDATA

◆ _Display_SPI_BLK_SIZE

◆ _GpioHandle

◆ _hardwareSPI

◆ _height

◆ _HighFreqDelay

◆ _spiHandle

◆ _textbgcolor

◆ _textcolor

◆ _textwrap

◆ _width

◆ _XStart
