HT16K33plus_Model1 Class Reference

class to control Ht16K33 , supports 7 9 14 and 16 segment displays More...

#include <HT16K33plus_Model1_RDL.hpp>

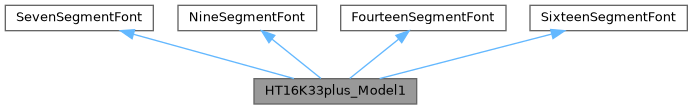

Inheritance diagram for HT16K33plus_Model1:

Public Types
enum	TextAlignment_e : uint8_t { AlignLeft = 0 , AlignRight = 1 , AlignRightZeros = 2 }
enum	BlinkFreq_e : uint8_t { BLINKOFF = 0x81 , BLINKON2HZ = 0x83 , BLINKON1HZ = 0x85 , BLINKON0_5HZ = 0x87 }
enum	DecimalPoint_e : uint8_t { DecPointOff = 0 , DecPointOn = 1 }
enum	DisplayType_e : uint8_t { SegType7 = 7 , SegType9 = 9 , SegType14 = 14 , SegType16 = 16 }

Public Member Functions
	HT16K33plus_Model1 (int I2Cdevice, int I2Caddress, int I2Cflags)
	Constructor for class HT16K33plus_Model1.
rdlib::Return_Codes_e	Display_I2C_ON (void)
	Switch on the I2C.
rdlib::Return_Codes_e	Display_I2C_OFF (void)
	End I2C operations.
int	DisplayCheckConnection (void)
	checks if Display on I2C bus
int	DisplayI2CErrorGet (void) const
	get I2C error Flag
uint16_t	DisplayI2CErrorTimeoutGet (void) const
	Gets the I2C timeout, used in the event of an I2C write error.
void	DisplayI2CErrorTimeoutSet (uint16_t)
	Sets the I2C timeout, in the event of an I2C write error.
uint8_t	DisplayI2CErrorRetryNumGet (void) const
	Gets the I2C error retry attempts, used in the event of an I2C write error.
void	DisplayI2CErrorRetryNumSet (uint8_t)
	Sets the I2C error retry attempts used in the event of an I2C write error.
void	DisplayInit (uint8_t brightLevel, BlinkFreq_e blink, uint8_t numOfDigits, DisplayType_e dtype)
	Initializes the HT16K33 display with specified settings.
void	DisplayOn (void)
	Turns on the display with the previously set blink setting.
void	DisplayOff (void)
	Turns off the display.
void	DisplaySleep (void)
	Puts the display into standby mode. Turn off System oscillator.
void	DisplayNormal (void)
	Restores the display to normal operation mode. Turn on System oscillator.
void	DisplayResetDefault (void)
	Resets the display to default settings.
void	setBrightness (uint8_t value)
	Sets the display brightness level.
uint8_t	getBrightness () const
	Gets the current brightness level.
void	setBlink (BlinkFreq_e value)
	Sets the display blink frequency.
BlinkFreq_e	getBlink () const
	Gets the current blink frequency setting.
DisplayType_e	getDisplayType () const
	Gets the display type.
void	ClearDigits (void)
	Clears all digits on the display.
void	displayRawData (uint8_t digitPos, uint16_t value)
	Sends raw segment data to a specific digit position.
rdlib::Return_Codes_e	displayChar (uint8_t digitPos, char c, DecimalPoint_e dp)
	Displays a single character at the specified digit position.
rdlib::Return_Codes_e	displayText (const char *text, TextAlignment_e TextAlignment)
	Displays a text string on display.
rdlib::Return_Codes_e	displayText (const char *text)
	Display a text string on display.
rdlib::Return_Codes_e	displayHexChar (uint8_t digitPos, char hex)
	Send Hexadecimal value to seven segment.
rdlib::Return_Codes_e	displayIntNum (int32_t number, TextAlignment_e TextAlignment)
	Display an integer and leading zeros optional.
rdlib::Return_Codes_e	displayFloatNum (float number, TextAlignment_e TextAlignment, uint8_t fractionDigits)
	Displays a floating-point number on the display.

Private Member Functions
rdlib::Return_Codes_e	displayMultiSegNum (uint8_t digitPos, char c, DecimalPoint_e dp)
	Displays a character on multi-segment displays (9, 14, or 16 segments).
void	SendCmd (uint8_t cmd)
	Send command byte to display.
void	SendData (const unsigned char *data, size_t length)
	Send data buffer to via I2C.

Private Attributes
int	_I2CAddress = 0x70
int	_I2CDevice = 1
int	_I2CFlags = 0
int	_I2CHandle = 0
uint16_t	_I2C_ErrorDelay = 100
uint8_t	_I2C_ErrorRetryNum = 3
int	_I2C_ErrorFlag = 0
BlinkFreq_e	_blinkSetting = BLINKOFF
DisplayType_e	_displayType = SegType7
uint8_t	_brightness = 7
uint8_t	_numOfDigits = 4

Static Private Attributes
static constexpr uint8_t	HT16K33_DDAPTR = 0x00
static constexpr uint8_t	HT16K33_NORMAL = 0x21
static constexpr uint8_t	HT16K33_STANDBY = 0x20
static constexpr uint8_t	HT16K33_DISPLAYON = 0x81
static constexpr uint8_t	HT16K33_DISPLAYOFF = 0x80
static constexpr uint8_t	HT16K33_BRIGHTNESS = 0xE0
static constexpr uint8_t	_HT_ASCIIOffset = 0x20
static constexpr uint8_t	_HT_HEXoffset = 0x10
static constexpr uint8_t	_HT_ASCIIEnd = 0x7B
static constexpr uint8_t	_HT_DEC_POINT_7_MASK = 0x80
static constexpr uint16_t	_HT_DEC_POINT_9_MASK = 0x0200
static constexpr uint16_t	_HT_DEC_POINT_14_MASK = 0x4000

Additional Inherited Members
Static Protected Member Functions inherited from SevenSegmentFont
static const uint8_t *	pFontSevenSegptr ()
	Retrieves a pointer to the seven-segment font data table.
Static Protected Member Functions inherited from NineSegmentFont
static const uint16_t *	pFontNineSegptr ()
	Retrieves a pointer to the nine-segment font data table.
Static Protected Member Functions inherited from FourteenSegmentFont
static const uint16_t *	pFontFourteenSegptr ()
	Retrieves a pointer to the fourteen-segment font data table.
Static Protected Member Functions inherited from SixteenSegmentFont
static const uint16_t *	pFontSixteenSegptr ()
	Retrieves a pointer to the sixteen-segment font data table.

Detailed Description

class to control Ht16K33 , supports 7 9 14 and 16 segment displays

Member Enumeration Documentation

BlinkFreq_e

enum HT16K33plus_Model1::BlinkFreq_e : uint8_t

Display blinking frequency XXXX-XB1B0X settings Display register D10 D9 -> (B1, B0)

Enumerator
BLINKOFF	Blinking off
BLINKON2HZ	2 Hertz
BLINKON1HZ	1 Hertz
BLINKON0_5HZ	0.5 Hertz

DecimalPoint_e

enum HT16K33plus_Model1::DecimalPoint_e : uint8_t

Activate Decimal point segment

Enumerator
DecPointOff	Decimal point segment off
DecPointOn	Decimal point segment on

DisplayType_e

enum HT16K33plus_Model1::DisplayType_e : uint8_t

The Display Type

Enumerator
SegType7	7 segment display
SegType9	9 segment display
SegType14	14 segment display
SegType16	16 segment display

TextAlignment_e

enum HT16K33plus_Model1::TextAlignment_e : uint8_t

Alignment of text on display

Enumerator
AlignLeft	Align text to the left on display
AlignRight	Align text to the right on display
AlignRightZeros	Add leading zeros to the text

Constructor & Destructor Documentation

HT16K33plus_Model1()

HT16K33plus_Model1::HT16K33plus_Model1	(	int	I2CDevice,
		int	I2Caddress,
		int	I2CFlags
	)

Constructor for class HT16K33plus_Model1.

Parameters

I2CDevice	An I2C device number.
I2Caddress	The address of a device on the I2C bus. default is 0x70.
I2CFlags	Flags which modify an I2C open command. None are currently defined.

Member Function Documentation

ClearDigits()

void HT16K33plus_Model1::ClearDigits

(

void

)

Clears all digits on the display.

Iterates through all digit positions and replaces each character with a blank space. The decimal points are also turned off.

Display_I2C_OFF()

rdlib::Return_Codes_e HT16K33plus_Model1::Display_I2C_OFF

(

void

)

End I2C operations.

Returns

error for failure to close a I2C bus device

1. rdlib::Success
2. rdlib::I2CcloseFail

Display_I2C_ON()

rdlib::Return_Codes_e HT16K33plus_Model1::Display_I2C_ON

(

void

)

Switch on the I2C.

Note

Start I2C operations.

Returns

error for failure to init a I2C bus

1. rdlib::Success
2. rdlib::I2CbeginFail

displayChar()

rdlib::Return_Codes_e HT16K33plus_Model1::displayChar	(	uint8_t	digitPosition,
		char	character,
		DecimalPoint_e	decimalOnPoint
	)

Displays a single character at the specified digit position.

Parameters

digitPosition	The position of the digit on the display (0-based index 0 = LHS).
character	The ASCII character to display.
decimalOnPoint	Specifies whether the decimal point should be enabled (enumeration DecimalPoint_e).

Returns

Return code indicating success or an error (enumeration rdlib::Return_Codes_e).

If the character is out of the supported ASCII font range, an error is logged and a corresponding error code is returned. If the display type is not 7-segment, the function delegates to displayMultiSegNum(). Otherwise, the function retrieves the 7-segment font data, applies the decimal point if needed, and sends the data to the display.

DisplayCheckConnection()

int HT16K33plus_Model1::DisplayCheckConnection

(

void

)

checks if Display on I2C bus

Returns

lg Error codes, LG_OKAY 0x00 = Success

Note

Error codes are here https://abyz.me.uk/lg/lgpio.html prints error code text to console

displayFloatNum()

rdlib::Return_Codes_e HT16K33plus_Model1::displayFloatNum	(	float	number,
		TextAlignment_e	TextAlignment,
		uint8_t	fractionDigits
	)

Displays a floating-point number on the display.

Parameters

number	The floating-point number to be displayed.
TextAlignment	Text alignment option (enumeration TextAlignment_e 2 options).
fractionDigits	Number of fractional digits to display.

Returns

Return code indicating success or an error (enumeration rdlib::Return_Codes_e).

Converts the floating-point number into a formatted string and displays it on the device. If the total number of required digits (integer + fractional + sign) exceeds the available display space, an error is returned. Leading zero alignment is not supported.

displayHexChar()

rdlib::Return_Codes_e HT16K33plus_Model1::displayHexChar	(	uint8_t	position,
		char	hex
	)

Send Hexadecimal value to seven segment.

Parameters

position	The position on display
hex	hexadecimal value (DEC) 0-15 (0x00 - 0x0F)

Returns

Will return an error if not hexadecimal.

DisplayI2CErrorGet()

int HT16K33plus_Model1::DisplayI2CErrorGet

(

void

)

const

get I2C error Flag

See Error Codes at bottom of https://abyz.me.uk/lg/lgpio.html

Returns

I2C error flag

DisplayI2CErrorRetryNumGet()

uint8_t HT16K33plus_Model1::DisplayI2CErrorRetryNumGet

(

void

)

const

Gets the I2C error retry attempts, used in the event of an I2C write error.

Number of times to retry in event of an error

Returns

_I2C_ErrorRetryNum

DisplayI2CErrorRetryNumSet()

void HT16K33plus_Model1::DisplayI2CErrorRetryNumSet

(

uint8_t

AttemptCount

)

Sets the I2C error retry attempts used in the event of an I2C write error.

Number of times to retry in event of an error

Parameters

AttemptCount

I2C retry attempts

DisplayI2CErrorTimeoutGet()

uint16_t HT16K33plus_Model1::DisplayI2CErrorTimeoutGet

(

void

)

const

Gets the I2C timeout, used in the event of an I2C write error.

Delay between retry attempts in event of an error , mS

Returns

I2C timeout delay in mS, _I2C_ErrorDelay

DisplayI2CErrorTimeoutSet()

void HT16K33plus_Model1::DisplayI2CErrorTimeoutSet

(

uint16_t

newTimeout

)

Sets the I2C timeout, in the event of an I2C write error.

Parameters

newTimeout

I2C timeout delay in mS

Delay between retry attempts in event of an error , mS

DisplayInit()

void HT16K33plus_Model1::DisplayInit	(	uint8_t	brightLevel,
		BlinkFreq_e	blinklevel,
		uint8_t	numOfDigits,
		DisplayType_e	displayType
	)

Initializes the HT16K33 display with specified settings.

Parameters

brightLevel	Brightness level (0-15). If greater than 15, it defaults to 15.
blinklevel	Blink frequency setting (enumeration BlinkFreq_e 4 settings).
numOfDigits	Number of digits to be displayed.
displayType	Type of display configuration (enumeration DisplayType_e 4 settings).

displayIntNum()

rdlib::Return_Codes_e HT16K33plus_Model1::displayIntNum	(	int32_t	number,
		TextAlignment_e	TextAlignment
	)

Display an integer and leading zeros optional.

Parameters

number	integer to display 2^32
TextAlignment	enum text alignment, left or right alignment or leading zeros

Returns

will return error user tries to display if too much data

displayMultiSegNum()

rdlib::Return_Codes_e HT16K33plus_Model1::displayMultiSegNum ( uint8_t  digitPosition, char  character, DecimalPoint_e  decimalOnPoint  )

private

Displays a character on multi-segment displays (9, 14, or 16 segments).

Parameters

digitPosition	The position of the digit on the display (0-based index, 0=LHS).
character	The ASCII character to display.
decimalOnPoint	Specifies whether the decimal point should be enabled (enumeration DecimalPoint_e).

Returns

Return code indicating success or an error (enumeration rdlib::Return_Codes_e).

Converts the ASCII character into the appropriate segment mapping for the display type (9-segment, 14-segment, or 16-segment). The decimal point is applied if applicable. The processed data is then sent to the display.

DisplayOn()

void HT16K33plus_Model1::DisplayOn

(

void

)

Turns on the display with the previously set blink setting.

Sends the command to enable the display, using the stored blink setting.

displayRawData()

void HT16K33plus_Model1::displayRawData	(	uint8_t	digitPosition,
		uint16_t	rawData
	)

Sends raw segment data to a specific digit position.

Parameters

digitPosition	The position of the digit on the display (0-based index).
rawData	The raw segment data to be displayed (bit-mapped for the display type).

This function allows direct control of the display segments by sending raw data. The rawData value is split into two bytes and transmitted to the display.

DisplayResetDefault()

void HT16K33plus_Model1::DisplayResetDefault

(

void

)

Resets the display to default settings.

This function restores normal operation mode, sets brightness to a default level of 7, and turns the display on with the stored blink setting.

displayText() [1/2]

rdlib::Return_Codes_e HT16K33plus_Model1::displayText

(

const char *

text

)

Display a text string on display.

Parameters

text	pointer to a character array

Returns

error code if string is nullptr or too long

Note

Dots are removed from string and dot on preceding digit switched on "abc.def" will be shown as "abcdef" with c decimal point turned on, Unless the Display is sixteen segment.

displayText() [2/2]

rdlib::Return_Codes_e HT16K33plus_Model1::displayText	(	const char *	text,
		TextAlignment_e	TextAlignment
	)

Displays a text string on display.

Parameters

text	pointer to character array containg text string
TextAlignment	left or right alignment

Note

This method is overloaded, see also DisplayText(char *) leading zeros is not currently an option as a workaround user can add them to string before hand.

Returns

WIll return error for null pointer string or leading zeros option requested

getBlink()

HT16K33plus_Model1::BlinkFreq_e HT16K33plus_Model1::getBlink

(

)

const

Gets the current blink frequency setting.

Returns

The current blink frequency (enumeration BlinkFreq_e).

getBrightness()

uint8_t HT16K33plus_Model1::getBrightness

(

)

const

Gets the current brightness level.

Returns

The current brightness level (0-15).

getDisplayType()

HT16K33plus_Model1::DisplayType_e HT16K33plus_Model1::getDisplayType

(

)

const

Gets the display type.

Returns

The current display type setting (enumeration DisplayType_e).

SendCmd()

void HT16K33plus_Model1::SendCmd ( uint8_t  cmd )

private

Send command byte to display.

Parameters

cmd	command byte

Note

if debug flag == true ,will output data on I2C failures.

SendData()

void HT16K33plus_Model1::SendData ( const unsigned char *  data, size_t  length  )

private

Send data buffer to via I2C.

Parameters

data	The data buffer to send
length	length of data to send

Note

if debug flag is true, will output data on I2C failures.

setBlink()

void HT16K33plus_Model1::setBlink

(

BlinkFreq_e

blinklevel

)

Sets the display blink frequency.

Parameters

blinklevel

Blink frequency setting (enumeration BlinkFreq_e 4 settings).

setBrightness()

void HT16K33plus_Model1::setBrightness

(

uint8_t

value

)

Sets the display brightness level.

Parameters

value

Brightness level (0-15). If greater than 15, it defaults to 15.

Member Data Documentation

_blinkSetting

BlinkFreq_e HT16K33plus_Model1::_blinkSetting = BLINKOFF

private

Blink setting, 4 settings see enum

_brightness

uint8_t HT16K33plus_Model1::_brightness = 7

private

Brightness setting 0-15

_displayType

DisplayType_e HT16K33plus_Model1::_displayType = SegType7

private

Enum to hold chosen display type

_HT_ASCIIEnd

constexpr uint8_t HT16K33plus_Model1::_HT_ASCIIEnd = 0x7B

staticconstexprprivate

last character+1 in defined ASCII table 'z'''

_HT_ASCIIOffset

constexpr uint8_t HT16K33plus_Model1::_HT_ASCIIOffset = 0x20

staticconstexprprivate

Offset in the ASCII table for font Start position

_HT_DEC_POINT_14_MASK

constexpr uint16_t HT16K33plus_Model1::_HT_DEC_POINT_14_MASK = 0x4000

staticconstexprprivate

Mask to switch on 14 seg decimal point

_HT_DEC_POINT_7_MASK

constexpr uint8_t HT16K33plus_Model1::_HT_DEC_POINT_7_MASK = 0x80

staticconstexprprivate

Mask to switch on 7 seg decimal point

_HT_DEC_POINT_9_MASK

constexpr uint16_t HT16K33plus_Model1::_HT_DEC_POINT_9_MASK = 0x0200

staticconstexprprivate

Mask to switch on 9 seg decimal point

_HT_HEXoffset

constexpr uint8_t HT16K33plus_Model1::_HT_HEXoffset = 0x10

staticconstexprprivate

16 Ascii table offset to reach number position

_I2C_ErrorDelay

uint16_t HT16K33plus_Model1::_I2C_ErrorDelay = 100

private

I2C delay(in between retry attempts) in event of error in mS

_I2C_ErrorFlag

int HT16K33plus_Model1::_I2C_ErrorFlag = 0

private

In event of I2C error, holds code

_I2C_ErrorRetryNum

uint8_t HT16K33plus_Model1::_I2C_ErrorRetryNum = 3

private

In event of I2C error number of retry attempts

_I2CAddress

int HT16K33plus_Model1::_I2CAddress = 0x70

private

I2C address

_I2CDevice

int HT16K33plus_Model1::_I2CDevice = 1

private

An I2C device number.

_I2CFlags

int HT16K33plus_Model1::_I2CFlags = 0

private

Flags which modify an I2C open command. None are currently defined.

_I2CHandle

int HT16K33plus_Model1::_I2CHandle = 0

private

A number referencing an object opened by one of lgI2cOpen

_numOfDigits

uint8_t HT16K33plus_Model1::_numOfDigits = 4

private

Number of digits in display max 8

HT16K33_BRIGHTNESS

constexpr uint8_t HT16K33plus_Model1::HT16K33_BRIGHTNESS = 0xE0

staticconstexprprivate

Dimming set register 0-15 XXXX-BBBB

HT16K33_DDAPTR

constexpr uint8_t HT16K33plus_Model1::HT16K33_DDAPTR = 0x00

staticconstexprprivate

Display data address pointer

HT16K33_DISPLAYOFF

constexpr uint8_t HT16K33plus_Model1::HT16K33_DISPLAYOFF = 0x80

staticconstexprprivate

Display set register Display off

HT16K33_DISPLAYON

constexpr uint8_t HT16K33plus_Model1::HT16K33_DISPLAYON = 0x81

staticconstexprprivate

Display set register Display on

HT16K33_NORMAL

constexpr uint8_t HT16K33plus_Model1::HT16K33_NORMAL = 0x21

staticconstexprprivate

System setup register turn on System oscillator, normal operation mode

HT16K33_STANDBY

constexpr uint8_t HT16K33plus_Model1::HT16K33_STANDBY = 0x20

staticconstexprprivate

Turn off System oscillator, standby mode

---

The documentation for this class was generated from the following files:

• HT16K33plus_Model1_RDL.hpp
• HT16K33plus_Model1_RDL.cpp
